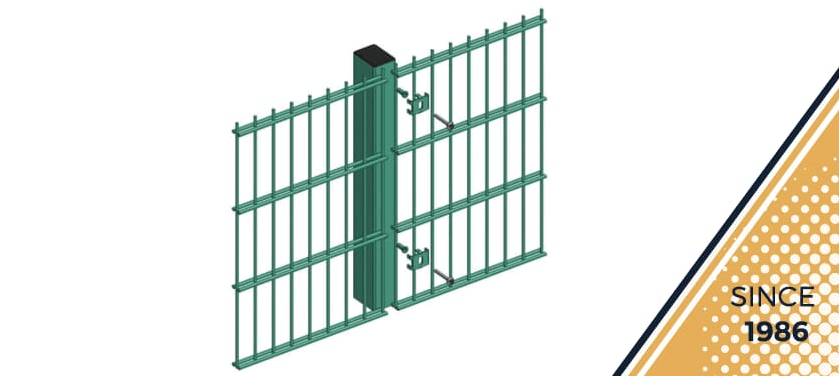

Double Wire Fence
Double wire fence, also known as twin wire fence, is a type of welded mesh fence featuring double horizontal wires, which provides extra strength compared to common welded mesh fences. Its high strength makes it suitable for schools and communities to provide excellent protection for people and their property.

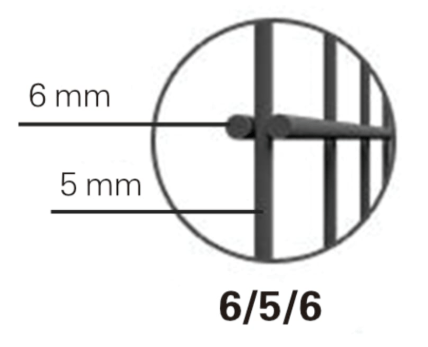

6/5/6 Double Wire Fence
Mesh Size
2″x8″ (50.8mm x 203.2mm)
Vertical Wire Diameter
AWG4 (5mm)
Horizontal Wire Diameter
AWG2.5 (6mm)
Panel Length
8.23′ (2508mm)
Panel Height
2′ (0.61m), 3′ (0.91m), 4′ (1.22m), 5′ (1.52m), 6′ (1.83m), 7′ (2.13m), 8′ (2.44m)

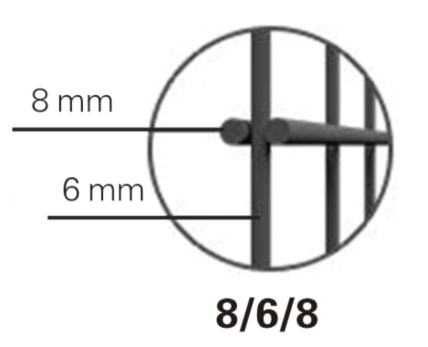

8/6/8 Double Wire Fence
Mesh Size
2″x8″ (50.8mm x 203.2mm)
Vertical Wire Diameter
AWG2.5 (6mm)
Horizontal Wire Diameter
AWG0 (8mm)
Panel Length
8.23′ (2508mm)
Panel Height
2′ (0.61m), 3′ (0.91m), 4′ (1.22m), 5′ (1.52m), 6′ (1.83m), 7′ (2.13m), 8′ (2.44m)
