BRC and Double Loop Fence

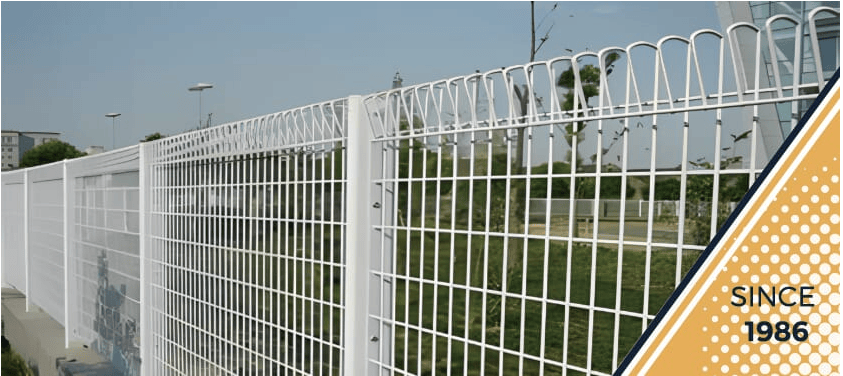

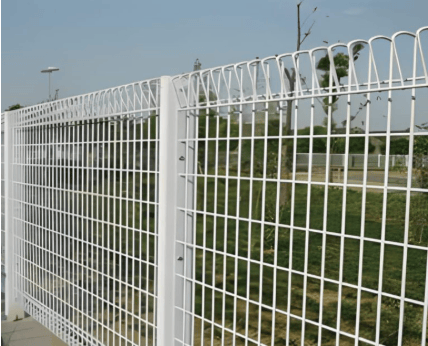

BRC fence, also known as roll top fence, is a welded wire fence option with rolled top and bottom edges. The thick wire diameter and firm welded structure provide the BRC fence with excellent tensile strength and impact resistance, widely used in public and private areas, such as schools and communities.

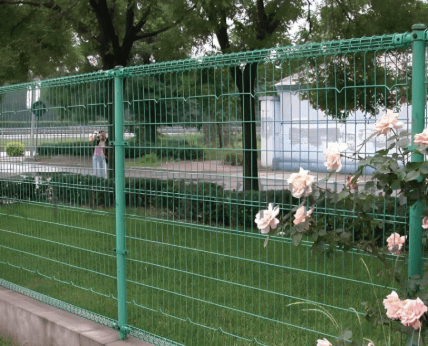

Double loop fence forms a loop pattern with four horizontal wires surrounded by vertical wires. The fence panels are connected to posts using clips, and the posts are made of welded steel tubes with a cap cover and a concrete foundation. Both the posts and panels are treated with a galvanizing and dipping process, providing long-lasting protection against corrosion and ensuring a longer lifespan.

Standard Specification for BRC and Double Loop Fence

Check the tabs below to learn more about the standard specifications for our BRC and Double Loop Fence!

Common Materials

Low carbon steel wire

Common Surface Treatment

Electro galvanized, hot-dip galvanized, PVC coated

Common Wire Diameter

AWG6 (4mm), AWG5.5 (4.5mm), AWG4 (5mm), AWG2.5 (6mm)

Common Mesh Opening

2″ x 8″ (50.8 x 203.2mm), 2″ x 6″ (50.8 x 152.4mm)
3″ x 12″ (76.2 x 304.8mm), 3″ x 8″ (76.2 x 203.2mm)

Panel Length

5′ (1.5m) to 10′ (3m)

Panel Height

36″ (914mm) to 95″ (2413mm)
