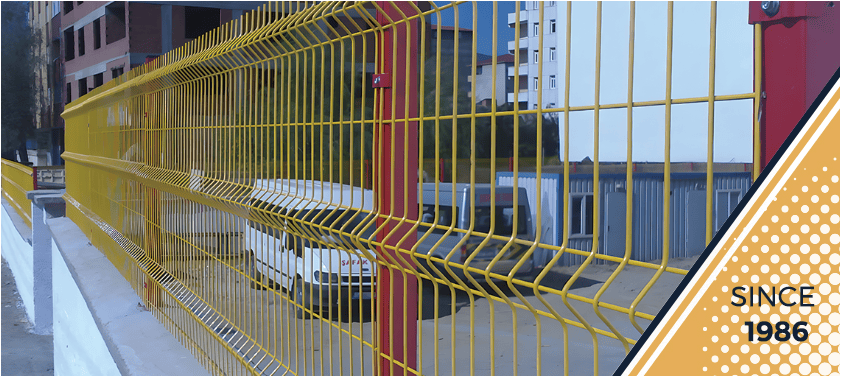

Curvy Welded Mesh Fence

BRC fence, also known as roll top fence, is a welded wire fence option with rolled top and bottom edges. The thick wire diameter and firm welded structure provide the BRC fence with excellent tensile strength and impact resistance, widely used in public and private areas, such as schools and communities.

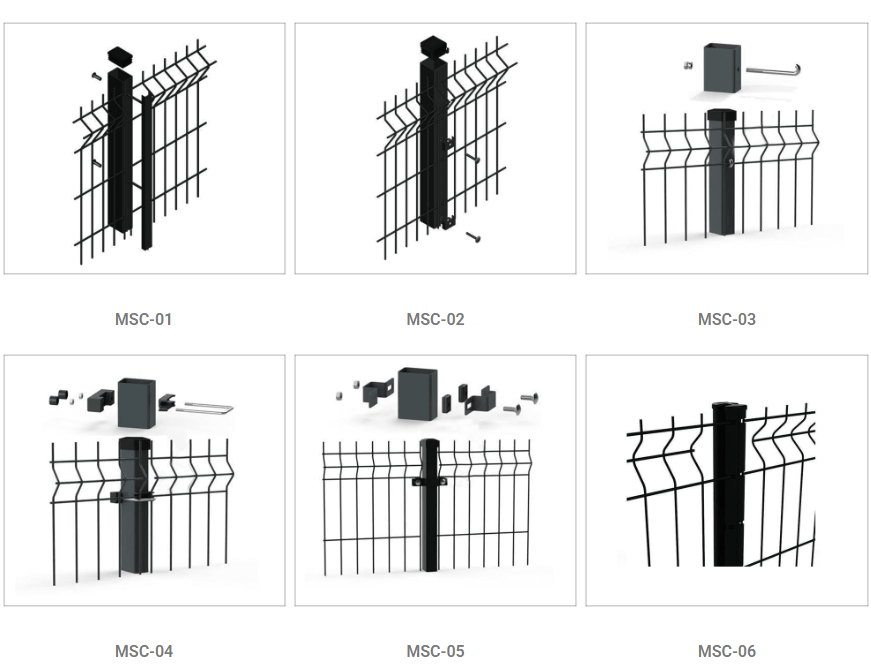

Double loop fence forms a loop pattern with four horizontal wires surrounded by vertical wires. The fence panels are connected to posts using clips, and the posts are made of welded steel tubes with a cap cover and a concrete foundation. Both the posts and panels are treated with a galvanizing and dipping process, providing long-lasting protection against corrosion and ensuring a longer lifespan.

Basic Types

Standard Specification for Curvy Welded Mesh Fence

Check the tabs below to learn more about the standard specifications for our Curvy Welded Mesh Fence!

Common Materials

Electro galvanized, hot-dip galvanized, PVC coated

Common Wire Diameter

AWG8.5 (3mm), AWG6 (4mm), AWG4 (5mm)

Mesh Opening

2″ x 8″ (50.8 x 203.2mm), 3″ x 8″ (76.2 x 203.2mm), 2″ x 6″ (50.8 x 152.4mm)
2″ x 4″ (50.8 x 101.6mm), 3″ x 6″ (76.2 x 152.4mm), etc.

Panel Length

6.6′ (2m), 7.2′ (2.2m), 8.2′ (2.5m), 9.8′ (3m)

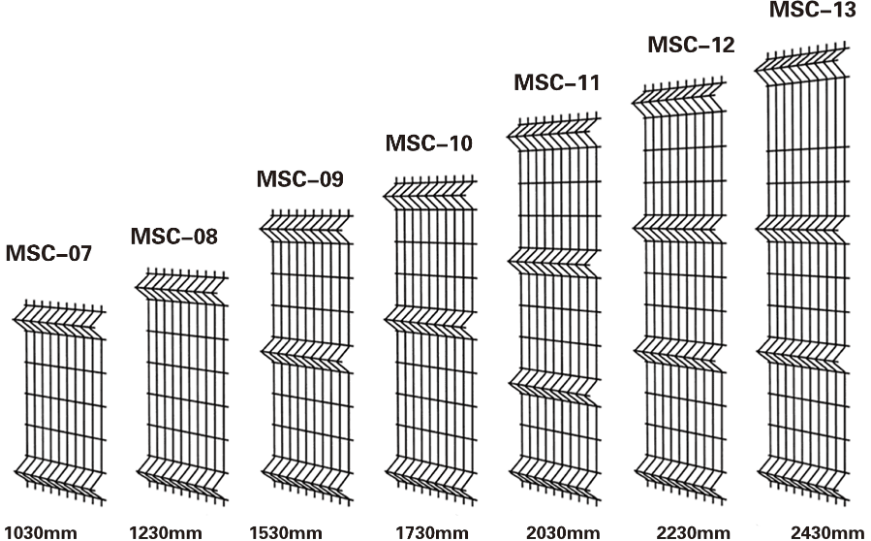

Panel Height

24.8″ (630mm), 32.7″ (830mm), 40.5″ (1030mm), 48.4″ (1230mm)
60.2″ (1530mm), 68″ (1730mm), 80″ (2030mm), 95.6″ (2430mm)
